Cameo4 Pro

Silhouette CAMEO PRO Contour Cutter
Max. Cutting Range: Sheet-61cm x 61cm with a cutting mat. Roll-60cm x 18.3m
Max. Cutting Force: 210gf
With a full 24 inch cutting width, the Cameo Pro is the largest cutting machine in its class. Silhouette has just given you the power to accommodate your biggest ideas.

Silhouette Cameo Pro 24 inches cutting machine

The Cameo 4 series allows you to create DIY projects with incredible precision. From cutting out fabric patterns to creating custom stickers, the Silhouette Cameo is the modern maker’s best friend.
With more speed and power than any other Silhouette machine, the Cameo 4 is a desktop cutting machine for the modern maker.
With certain materials, you can now choose to cut from a mat or go completely matless using Cameo 4’s smart cutting technology. You can also cut directly from a roll using the built-in roll feeder and crosscutter. Cut out or sketch on dozens of materials such as vinyl, cardstock, fabric, and more.

Brand New Silhouette PRO features:

  • Built-in roll feeder allows you to easily load and cut rolled materials like vinyl and heat transfer
  • Built-in crosscutter lets you trim vinyl or heat transfer right from the roll
  • Full 24-inch cutting width (when using a cutting mat)
  • Cut up to 60 feet in length (with select materials)
  • Matless cutting capabilities (see Tech Specs for full details)
  • 3 mm clearance for thicker materials
  • Automatic tool detection
  • Sleek, compact aesthetic with a sliding lid and feather-light backlit touch panel
  • Wireless cutting with Bluetooth® connectivity
  • Print & Cut registration capability
  • PixScan™ compatible
  • Driven by Silhouette Studio® giving you limitless design options to customize your projects
  • Optional Illustrator and CorelDRAW plug-in software which is more convenient for professional users
CAMEO4 PRO

Backlit Touch Panel

The Cameo Pro uses a simplified touch panel to load and unload your material as well as move the cutting mat or the position of the tools or connect Bluetooth®.

CAMEO4 PRO

Crosscutter

The back of the machine houses the crosscutter. After you’ve cut your material, all you need to do is unlock the crosscutter and slide the crosscutter blade along the track of the crosscutter cartridge.

CAMEO4 PRO

Roll Feeder

The roll feeder slides out from a tray located on the bottom of the machine and folds out. It can hold up to 24-inch rolls (with a maximum roll diameter of 3 inches).

CAMEO4 PRO

Automatic Tool Detection

Auto Tool Detect is a feature that all the Cameo 4 machines have, and it allows the Silhouette Studio® software to automatically detect what tools are inserted into your machine. This ensures you have the right cut settings every time.

CAMEO4 PRO

Contour Cut

Print the registered mark with design by your home printer, and use your Silhouette to read the mark and cut them out. You can make custom stickers, printed heat transfer decals, temporary tattoos, and more!

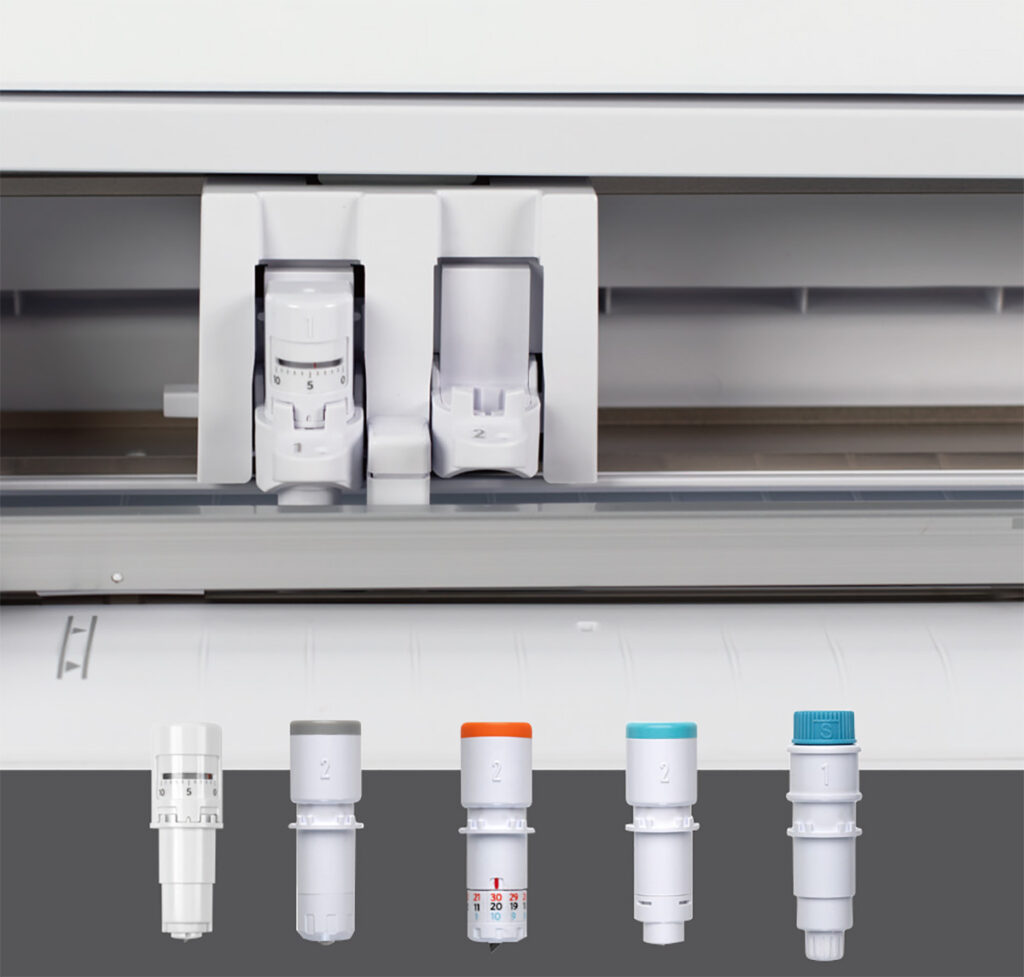

The Cameo 4/PRO is compatible with three new specialty tools: the Rotary Blade for Cameo 4, the 3mm Kraft Blade for Cameo 4, and the Punch Tool for Cameo 4. Each of these tools is compatible with the Cameo 4/PRO only and can be used only in Carriage 2 of the machine.

CAMEO4 PRO

Cameo 4 series cuts jobs up to 3 times faster than previous models.

CAMEO4 PRO

What's in the box:

  • Silhouette Cameo® 4 Pro
  • Power cable & USB cable
  • Cameo Pro Cutting Mat (24″ x 24″)
  • AutoBlade2
  • Sketch Pen Adapter (blue adapter)
  • Silhouette Studio® software (download)
  • 100 exclusive designs (download)
  • 1-month Silhouette Design Store subscription (available with tool registration)
cameobox

Silhouette Cameo Pro
desktop cutting machine

cameobox

A/C adapter and power cable

cameobox

24-inch cutting mat

cameobox

Roll feeder and mat support pices

cameobox

AutoBlade for Cameo4

cameobox

USB cable

cameobox

Handheld blade adjuster

Sketch Pen adapter

What can it do?

  • Design your own custom apparel
  • Personalize a party
  • Give your home decor a signature look
  • Build 3D prototypes
  • Cut fabric and save time doing it
  • Decorate with vinyl decals
  • Construct a school project
  • Create custom invitations
  • Make a stencil
  • Create unique stamps

CAMEO 4 PRO_Specification

Maximum Cutting Area

24”x 24” (61 cm x 61 cm) with a cutting mat

12” x 60’ (61 cm x 18.3 m) with a lined media

Maximum Media Thickness

Carriage 1: 210 gf

Carriage 2: 5kgf

Maximum Cutting Speed

300mm/s

USB Port

For reading and cutting saved files directly

Compatible Media Types

Vinyl, heat transfer material, cardstock, photo paper, copy paper, rhinestone template material, fabric

Interface

USB 2.0 high speed / Bluetooth®

Unit Dimensions

34.5 in. x 7.68 in. x 6.69 in. (87.6 cm x 19.5 cm x 17 cm)

Unit Weight

19 lbs 6.4 oz (8.8 kg)

Shipping Dimensions

39 in. x 12 in. x 9.75 in. (99.1 cm x 30.5 cm x 24.8 cm)

Shipping Weight

26 lbs 1.6 oz (11.84 kg)

Included Standard Accessories

Power Cable

100-240 volts AC adapter

Blade

Silhouette AutoBlade 2 (for Cameo® 4)

USB Cable

High-speed 2.0

24” Cutting Mat

24” x 24” (61 cm x 61 cm)

Tool

Sketch Pen Adapter (blue adapter)

Digital Cutting Files (Online)

100 exclusive cutting designs

Basic Design Subscription (online)

One-month basic subscription to the Silhouette Design Store

Silhouette Studio® (online)

Silhouette Studio® design software for Windows 7 and newer, and Mac OS X 9.5 and higher

Basic Instruction Guide (Online)


Consumables

Autoblade for CAMEO4

The AutoBlade will automatically be adjusted according to the selected setting from the software.

Tool adapter set

The compatible tools you can use with the adapters are the Standard Blade, the Premium Blade, the Fabric Blade, the Deep-Cut Blade, the 2mm Kraft Blade, and the Silhouette Sketch Pens (only the Sketch Pens with the black bodies are compatible with the adapter)

Ratchet Blade

(with tool adapter set)

Regular blade. Ratchet adjustment (manually).

Premium Blade

(with tool adapter set)

It can provide up to three times the lifespan of a regular blade under normal cutting conditions.

Deep-cut Blade

(with tool adapter set)

It is ideal for cutting thicker materials, such as craft foam or other soft materials up to 2mm thickness.

2mm Kraft Blade (CAMEO3~4)

(with tool adapter set)

It allows you to cut specialty craft materials, such as chipboard, acetate, leather, and craft foam.

3mm Kraft Blade (CAMEO4)

It allows you to cut specialty craft materials, such as chipboard, acetate, leather, and craft foam.

Rotary Blade (CAMEO4)

It cuts by having the blade roll across your material. This enables you to cut a variety of specialtymaterial—including cotton fabrics, leather, felt, and wool without a special stabilizer backing.

Punch tool (CAMEO4)

It can create weeding points to make it easier to weed your vinyl or heat transfer.

Fabric Blade

(with tool adapter set)

With stabilizer backing, you can cut fabric by this blade.

Pen Holder (CAMEO4)

It allows you to use a range of pens, from a thinner standard ball-point pen to a thicker felt-tip marker.

Cutting mat 12”x12”

Standard Tack

Regular adhesive level to hold materials in place when sending jobs to the Silhouette machine.

Cutting mat 12”x24”

Standard Tack

Regular adhesive level to hold materials in place when sending jobs to the Silhouette machine.

Cutting mat 24”x24”

Standard Tack

Regular adhesive level to hold materials in place when sending jobs to the Silhouette machine.

Cutting mat 12”x12”

Light Tack

Light adhesive level to hold thinner materials, such as copy paper.

Cutting mat PIXSCAN 12”x12”

It’s perfect for digitizing a stamp collection or turning a hand-drawn sketch into a cut job.

Cutting Strip (CAMEO4)

The Cutting Strip in your Silhouette Cameo® can be replaced if it wears out.

Silhouette CAMEO 4 Pro for Beginners: First Cut
